TUNNEL & UTILITY CORRIDOR MONITORING
15 Minutes Inside a Tunnel Can Be the Difference Between an Incident and a Disaster.
What Happens Underground Does Not Stay Underground
If your team still relies on monthly inspections and manual operation, these risks are already on your timeline.
Manual inspection is too slow
A gas leak can begin days after the last walkthrough. Without continuous readings, risk grows in the dark.
Equipment is scattered
Fans, pumps, lighting, and signage are spread across kilometers. Manual response turns distance into delay.
No coordinated response
Fire, smoke, gas, or flooding require simultaneous actions. Phone-call coordination is not a safety system.
No historical evidence
Without trend data, safety decisions depend on instinct instead of measured change over time.
Every Meter. Every Parameter. Every Second.
TunnelGuard combines environmental sensing, distributed LoRa interlocking,
remote I/O equipment control, and cloud visibility into one emergency-response architecture.
Everything You Need to Keep Your Tunnel Safe
Capabilities are written as feature-to-outcome: what the system does, and what your operations team gets.
Real-Time Monitoring
CO, CH4, H2S, O2, temperature, humidity, and water level are collected continuously so your team sees tunnel conditions as they change.
Wireless Alarm
Y403-11-L auto relay logic lets one dry-contact trigger energize outputs across peer nodes for coordinated response.
Remote Control
I/O modules connect equipment control points and return status so operators can start fans, pumps, and lights without entering the hazard zone.
Video + AI
Critical zones can add camera-based smoke and fire recognition for visual confirmation before escalation.
Mobile APP
Managers receive data, alarms, records, and trend curves from a phone when they are away from the control room.
IoT Cloud
Large-screen visualization lets operations staff scan alarm state, current readings, and trend history from one place.
Related Products
These verified YenGear products anchor the TunnelGuard control and linkage architecture.
Use Y403-11-L to build local auto relay network for emergency.

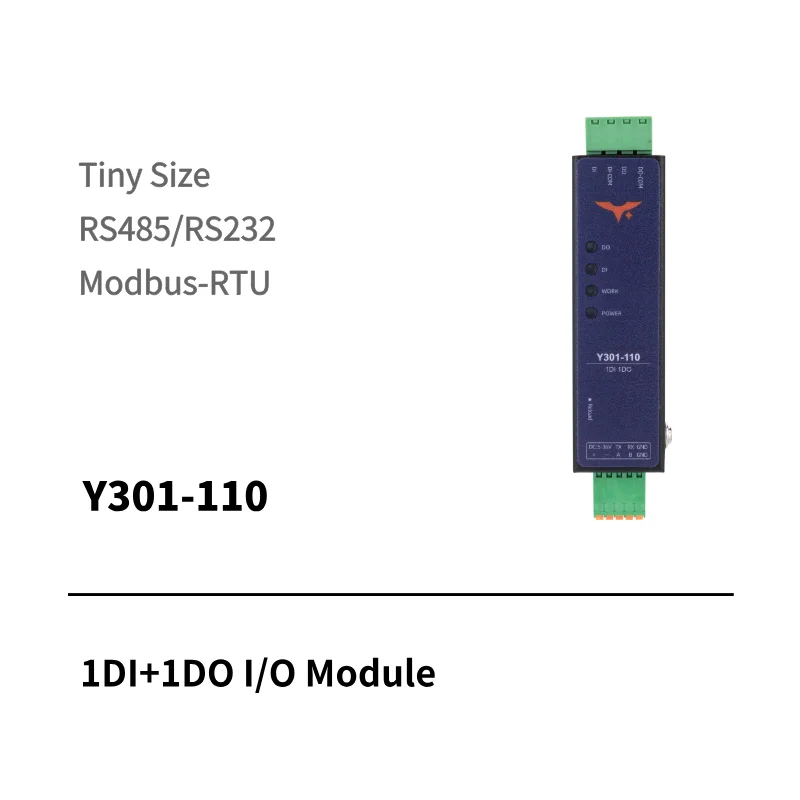

Use Y301-110 to control.
Use Y403-11-L to build local auto relay network for emergency.
Use Y301-110 to control.
Why Monitoring Alone Is Not Enough
A screen that shows readings is useful. A system that responds automatically is safety infrastructure.
| Passive Monitoring | Automated Linkage with TunnelGuard |
|---|---|
| Sensor detects gas, alarm appears, operator notices, calls a crew, then someone enters the tunnel to start equipment. | Sensor contact closes, Y403-11-L DI triggers, interlocking propagates through the mesh, and DO outputs energize across the line. |
| Fans, pumps, lights, and signs behave like independent islands that require manual coordination. | Every node is part of one distributed interlocking network, so equipment groups can respond together. |
| Response time depends on staffing, phone calls, distance, and access conditions. | Response can trigger in under 5 seconds when the configured linkage condition is met. |
| Network outages create alarm gaps and make later reporting harder. | Self-healing mesh and gateway buffering help preserve communication and historical records. |
| After the incident, teams reconstruct events from fragmented logs. | Detection, trigger, equipment response, operator action, and resolution are kept in one event timeline. |
Built for Every Underground Environment
Highway tunnels, utility corridors, metro tunnels, passages,
and mine tunnels share one safety truth: abnormal conditions must trigger a coordinated response fast.
Highway Tunnel
CO or smoke condition triggers ventilation, lighting, signage, and portal response.
Utility Corridor
CH4, H2S, water level, and heat alerts activate fans, pumps, and maintenance notifications.
Metro Tunnel
Temperature, humidity, and emergency lighting status feed the control room for rapid response.
Underground Passage
Water-level escalation can start primary and backup pumps before flooding spreads.
When a Utility Corridor Flooded at Midnight,
TunnelGuard Responded Before the Team Woke Up
A deployment profile showing how full-line monitoring, remote control, and emergency linkage work together in practice.
Southern China tunnel cluster + urban utility corridor
A multi-tunnel highway cluster and urban utility corridor project needed continuous environmental visibility, remote equipment control, and automated full-line emergency linkage across long, complex underground routes.
YenGear deployed environmental monitoring nodes, Y301 I/O modules at fan rooms, pump stations, and lighting panels, Y403-11-L LoRa mesh interlocking controllers along the route, gateways for uplink, and the YenGear IoT Cloud for monitoring, alerting, and control.
50 km+
Total monitored tunnel and corridor length in the deployment context.
24/7
Continuous monitoring replaced periodic spot-check dependence.
<5s
Configured emergency linkage can trigger automatically when abnormal events are detected.
Water Accumulation Incident
“We can now see the full status of the entire line from the monitoring center. Manual tunnel inspections have been significantly reduced. Safety and operational efficiency have both improved notably.”
Engineered for the Underground. Proven Under Pressure.
Reliability is designed at the hardware, network, uplink, and data layers so the system can keep protecting places people should not enter during an incident.
Industrial hardware
Wide DC input, industrial mounting, and product-rated temperature and humidity ranges support harsh tunnel environments.
Self-healing mesh
Y403-11-L LoRa mesh nodes can relay and reroute signals across long corridors without relying on one central controller.
Multi-path connectivity
Ethernet, LoRa mesh, gateway uplink, and optional 4G backup reduce dependence on any single communication path.
Audit-ready records
Detection, linkage trigger, equipment response, operator action, and resolution data are retained for review and reporting.
Frequently Asked Questions
Connectivity, integration, mesh behavior, configurability, and pricing are addressed before the sales conversation.
What if there is no 4G signal inside the tunnel?
In-tunnel communication uses LoRa mesh between Y403-11-L nodes. Gateways near entrances or fiber-access points aggregate data and uplink through Ethernet or 4G backup.
Can TunnelGuard integrate with existing PLC or SCADA?
Yes. Integration can use Modbus TCP/RTU, OPC-UA, API, or project-specific gateway architecture after the site survey.
How is Y403 LoRa mesh different from Wi-Fi?
LoRa is designed for long-range, low-bandwidth industrial signaling. Mesh nodes relay messages and can reroute around failed paths, which is more suitable for long underground corridors than ordinary Wi-Fi.
Can emergency linkage rules be configured by scenario?
Yes. Gas, water level, manual trigger, or compound conditions can map to different equipment response groups during commissioning.
What happens during a network interruption?
Gateways can buffer data locally and backfill history after connectivity recovers, while local interlocking logic can continue to respond at the field layer.
What does pricing depend on?
Tunnel length, monitoring point count, sensor types, controller count, gateway configuration, integration scope, and cloud or on-premise deployment model.
Do Not Let the Next Incident Happen in the Dark.
Tell us your tunnel length, monitoring parameters, equipment groups, and existing SCADA or PLC environment.
YenGear will help design a TunnelGuard configuration for your site.
